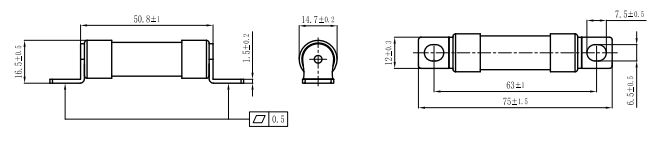

HBE06 Dimensions:mm

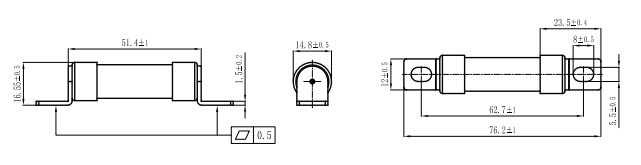

HBE06-M5 Dimensions:mm
HBE06 Series
- Rated Current： 10A～63A
- Rated Voltage： 800VDC/1000VDC
- Breaking Capacity： 10kA（DC），L/R=2±0.5ms
- Refered Standard： JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019
- Certification： RoHS
Customer Services
Requirement Parameters
Shape and Dimensions
Product Lists
| Product Models | Rated Voltage | Rated Current | Breaking Capacity |
|
HBE06 |
800VDC |
10A～63A |
10kA |
|
1000VDC |
10A～50A |
10kA |
|
|
HBE06-M5 |
1000VDC |
10A～50A |
10kA |
