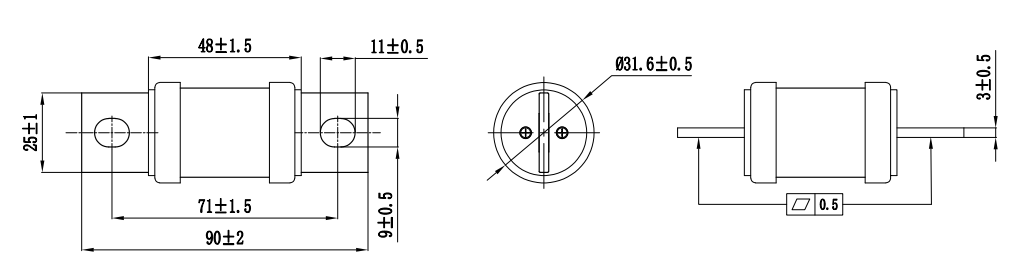

JDA05-B Dimensions:mm

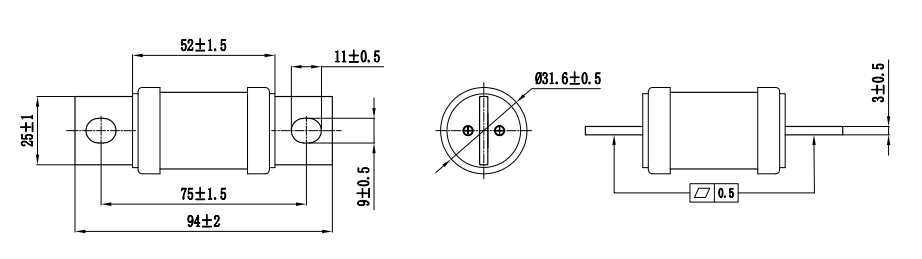

JDA05-D Dimensions:mm
JDA05-3H Dimensions:mm
JDA05-3HB Dimensions:mm
JDA05 Series
- Rated Current： 100A～350A
- Rated Voltage： 500VDC
- Breaking Capacity： 20kA（DC），L/R=2±0.5ms
- Refered Standard： JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019、UL248-20
- Certification： UL、RoHS
Customer Services
Requirement Parameters
Shape and Dimensions
Product Lists
| Product Models | Rated Voltage | Rated Current | Breaking Capacity | Notes |
|
JDA05-B |
500VDC |
100A～300A |
20kA |
/ |
|
JDA05-D |
20kA |
/ |
||
|
JDA05-3H |
100A～350A |
20kA |
ULcertification |
|
|
JDA05-3HB |
20kA |
ULcertification |
