Location: Home > Product Series > Applications for Electric Vehicle > JDA/RDA Series
JDA05-S Series
  • Rated Current： 100A～500A
  • Rated Voltage： 500VDC/750VDC
  • Breaking Capacity： 20kA（DC），L/R=2±0.5ms
  • Refered Standard： JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019
  • Certification： RoHS
Customer Services
Requirement Parameters

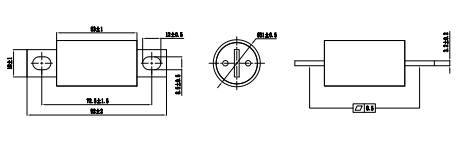

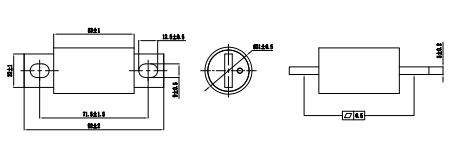

Shape and Dimensions

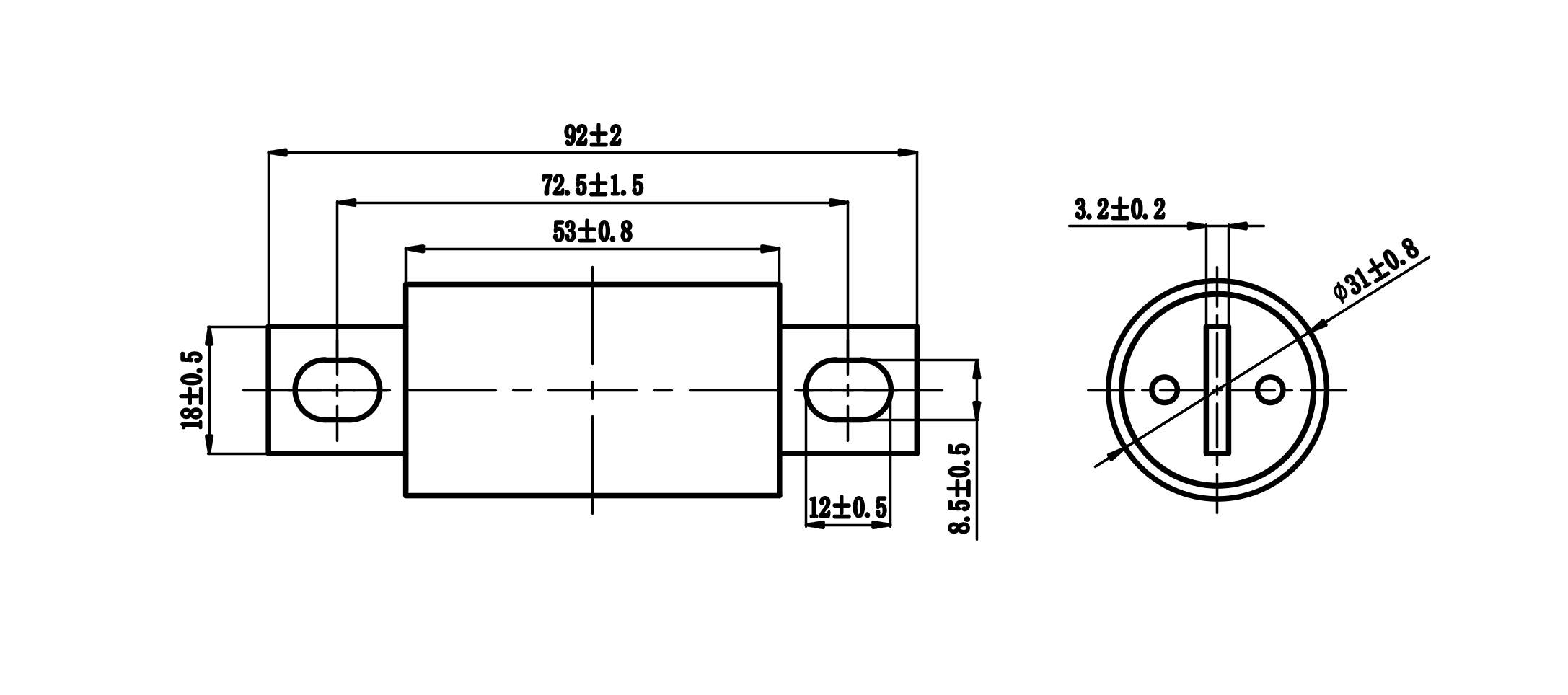

JDA05-S Dimensions:mm

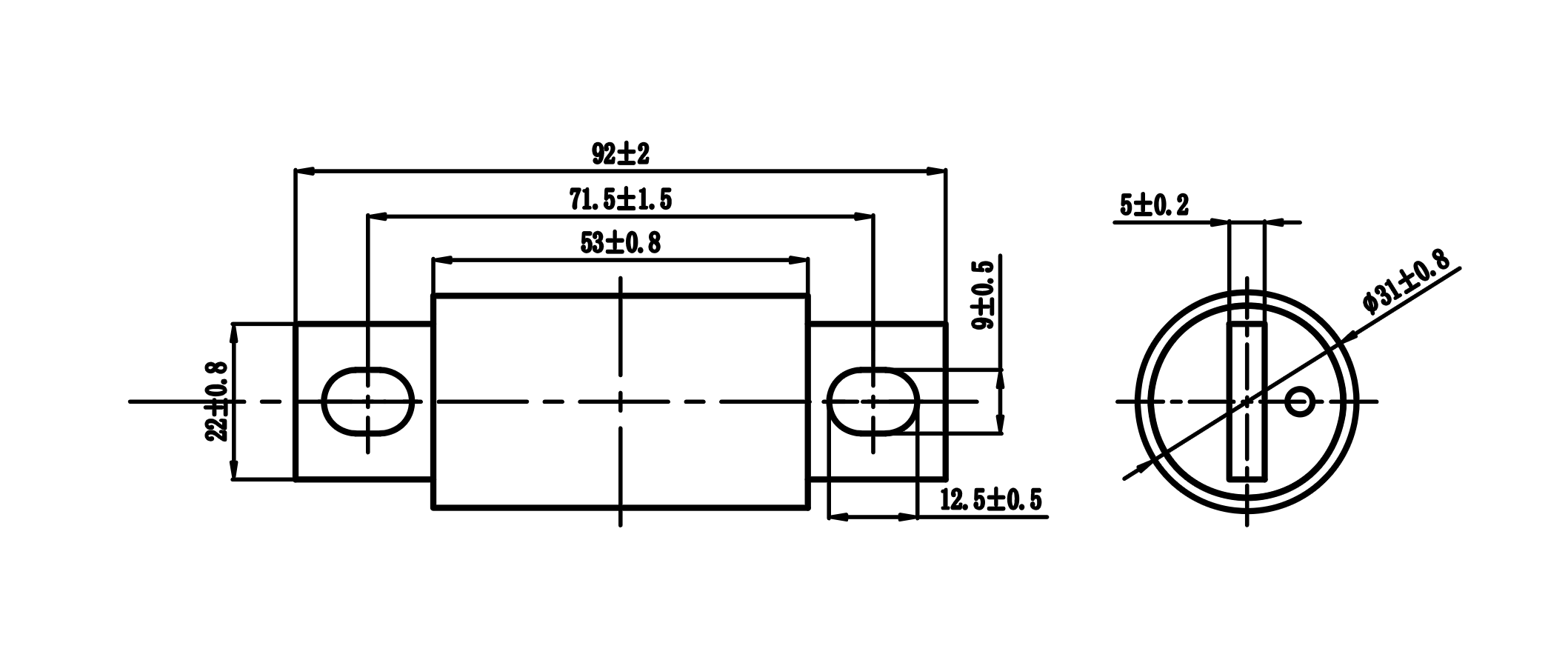

JDA05-S-01 Dimensions:mm

Product Lists
Product Models Rated Voltage Rated Current Breaking Capacity

JDA05-S/JDA05-S-01

500VDC

100A~500A

20kA

750VDC

200A~400A

   20kA
