Product Series

JEA05 Series
  • Rated Current: 100A~500A
  • Rated Voltage: 500VDC/750VDC
  • Breaking Capacity: 20kA(DC),L/R=2±0.5ms
  • Refered Standard: JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019、UL248-20
  • Certification: UL、RoHS
Customer Services
Requirement Parameters
Shape and Dimensions

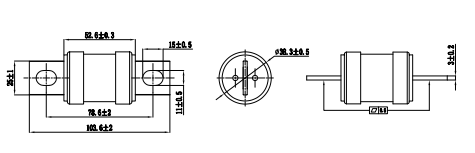

JEA05-3H Dimensions:mm





JEA05-3HB Dimensions:mm





JEA05-6H Dimensions:mm





JEA05-6H-M8 Dimensions:mm



Product Lists
Product Models Rated Voltage Rated Current Breaking Capacity Notes

JEA05-3H

500VDC

200A~500A

20kA

ULcertification

750VDC

100A~400A

ULcertification

JEA05-3HB

500VDC

200A~500A

/

JEA05-6H

500VDC

200A~400A

/
