Product Series

JEA07 Series
  • Rated Current: 100A~400A
  • Rated Voltage: 800VDC/1000VDC
  • Breaking Capacity: 20kA(DC)/50kA(DC),L/R=2±0.5ms
  • Refered Standard: JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019
  • Certification: RoHS
Customer Services
Requirement Parameters

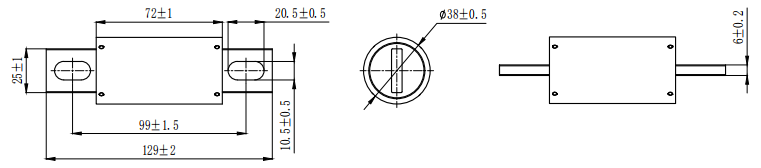

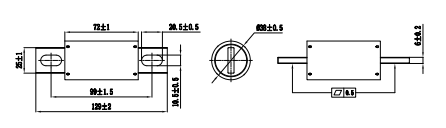

Shape and Dimensions

JEA07 Dimensions:mm



Product Lists
Product Models Rated Voltage Rated Current Breaking Capacity

JEA07

800VDC

125A~400A

20kA

1000VDC

100A~350A

50kA
