Product Series

TDR000 Series
  • Rated Current: 50A~400A
  • Rated Voltage: 250VDC/500VDC/750VDC
  • Breaking Capacity: 20kA(DC),L/R=2±0.5ms
  • Refered Standard: JASO D622、ISO 8820.8、GB/T 31465.6、NB/T 10329-2019
  • Certification: 3C、CE、TUV、RoHS
Customer Services
Requirement Parameters
Shape and Dimensions

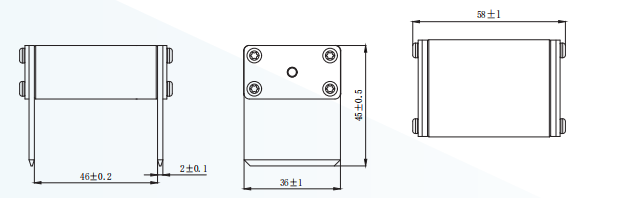

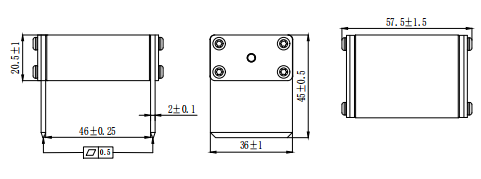

TDR000-MSD Dimensions:mm

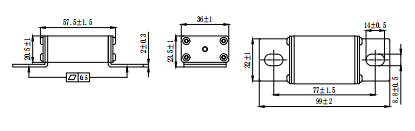

TDR000-H Dimensions:mm

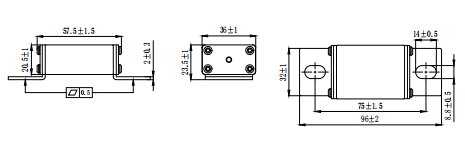

TDR000-HB Dimensions:mm











Product Lists
Product Models Rated Voltage Rated Current Breaking Capacity

TDR000-MSD

500VDC

50A~400A

20kA

750VDC

TDR000-H

500VDC

750VDC

TDR000-HB

500VDC

750VDC
