Product Series

RFA10 Series
  • Rated Current: 250A~600A
  • Rated Voltage: 1000VDC
  • Breaking Capacity: 50kA(DC)
  • Refered Standard: UL248-13、IEC 60269-4、GB/T 13539.4
  • Certification: 3C、CE、RoHS
Customer Services
Requirement Parameters

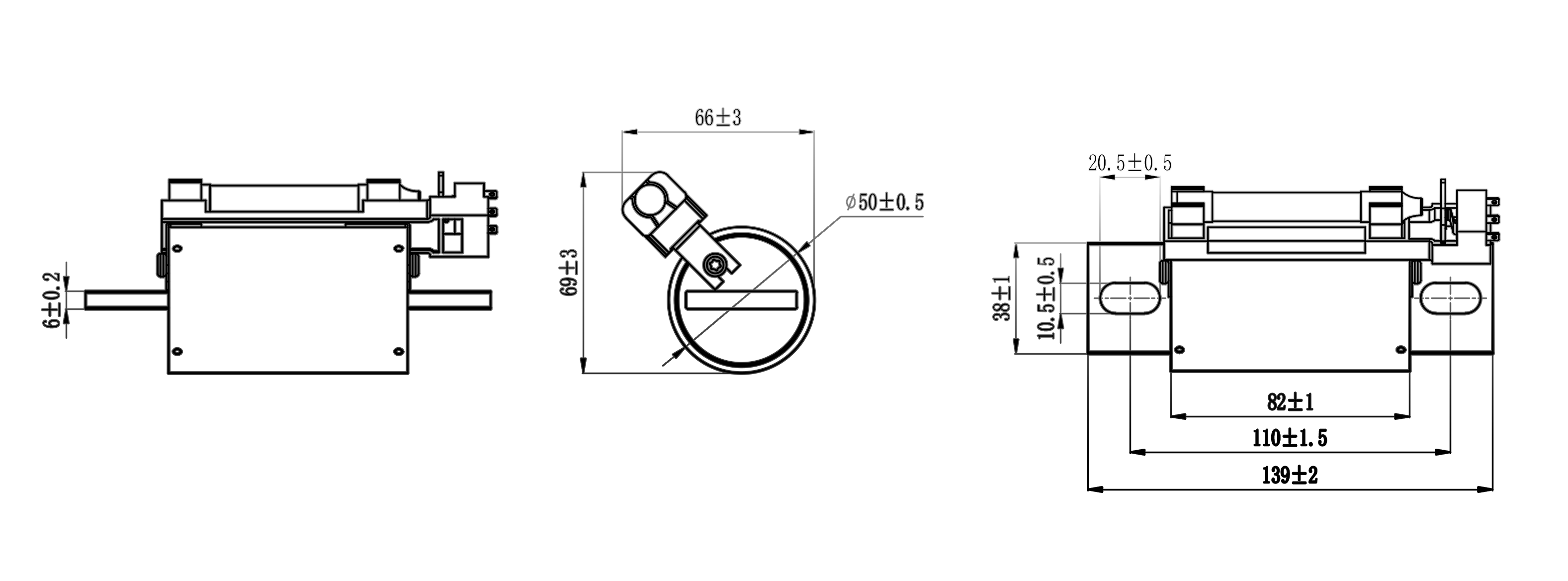

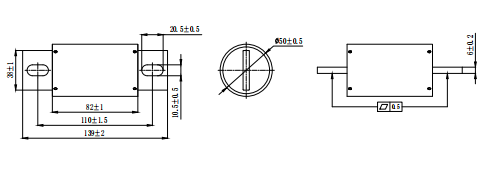

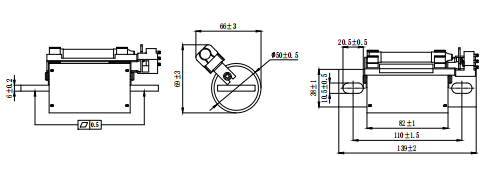

Shape and Dimensions

RFA10-JS Dimensions:mm
