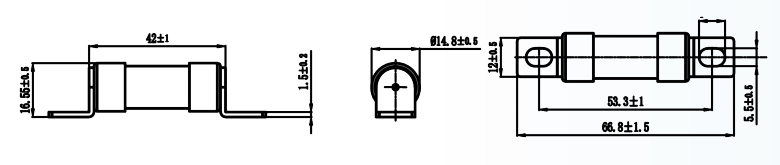

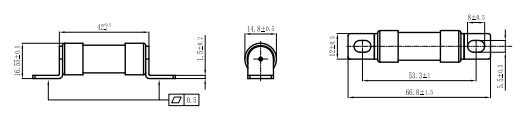

HBE05 DIMENSIONS:mm

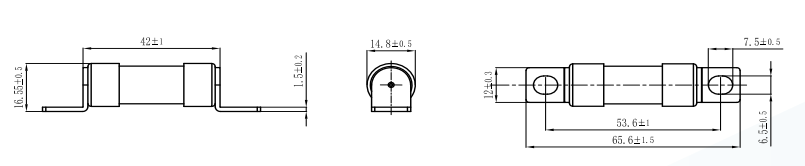

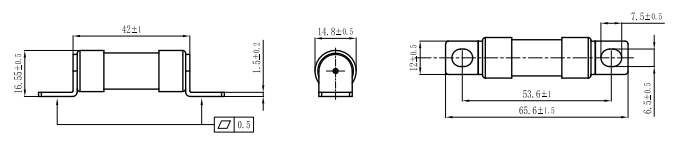

HBE05-M5 DIMENSIONS:mm
HBE05 Series
- Rated Current： 15A～100A
- Rated Voltage： 500VDC/850V/1000VDC
- Breaking Capacity： 20kA（DC），L/R=1±0.5ms
- Refered Standard： JASO D622、ISO 8820.8、GB/T31465.6、NB/T10329-2019
- Certification： RoHS
Customer Services
Requirement Parameters
Shape and Dimensions
Product Lists
|
产品型号 |
额定电压 |
额定电流 |
分断能力 |
|
HBE05 |
500VDC/850V/1000VDC |
15A～100A |
20kA |
|
HBE05-M5 |
