Location: Home > Product Series > Applications for Electric Vehicle > JEA/REA Series
JEA05-S/MS Series
  • Rated Current： 50A～800A
  • Rated Voltage： 500VDC
  • Breaking Capacity： 20kA（DC），L/R=2±0.5ms
  • Refered Standard： JASO D622、ISO 8820.8、GB/T31465.6、NB/T10329-2019
  • Certification： RoHS
Customer Services
Requirement Parameters
Shape and Dimensions

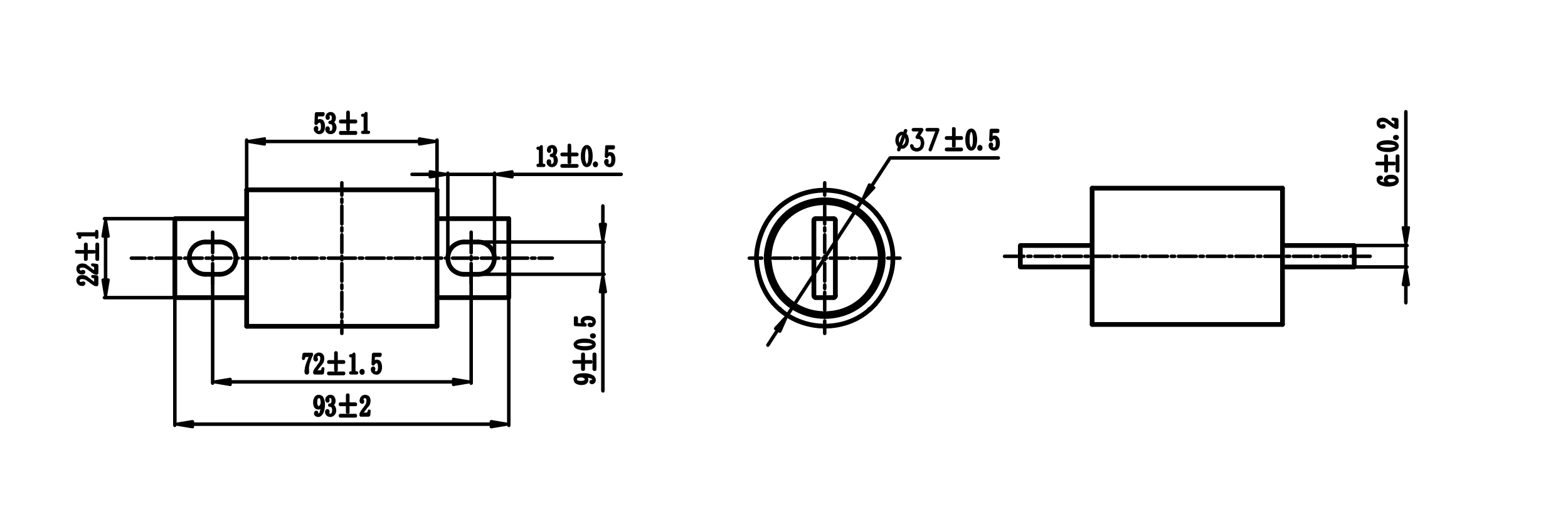

JEA05-S Dimensions:mm

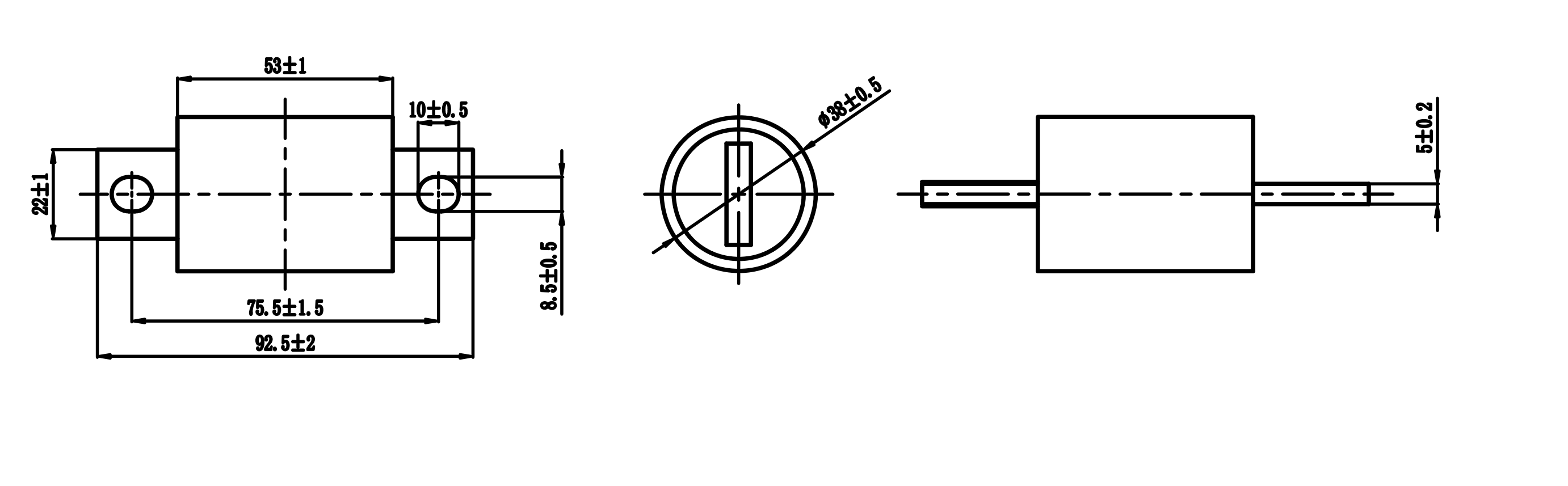

JEA05-S-01 Dimensions:mm

JEA05-S-02 Dimensions:mm

JEA05-MS Dimensions:mm



Product Lists

产品型号

额定电压

额定电流

分断能力

JEA05-S/01/02

500VDC

50A～800A

20kA

JEA05-MS

200A～700A

20kA
