JGA07-S Series
  • Rated Current： 400A～800A
  • Rated Voltage： 1000VDC
  • Breaking Capacity： 25kA（DC），L/R=2±0.5ms
  • Refered Standard： GB/T31465.6、IEC60269-4、ISO 8820、JASO D622
  • Certification： RoHS
Customer Services
Requirement Parameters
Shape and Dimensions

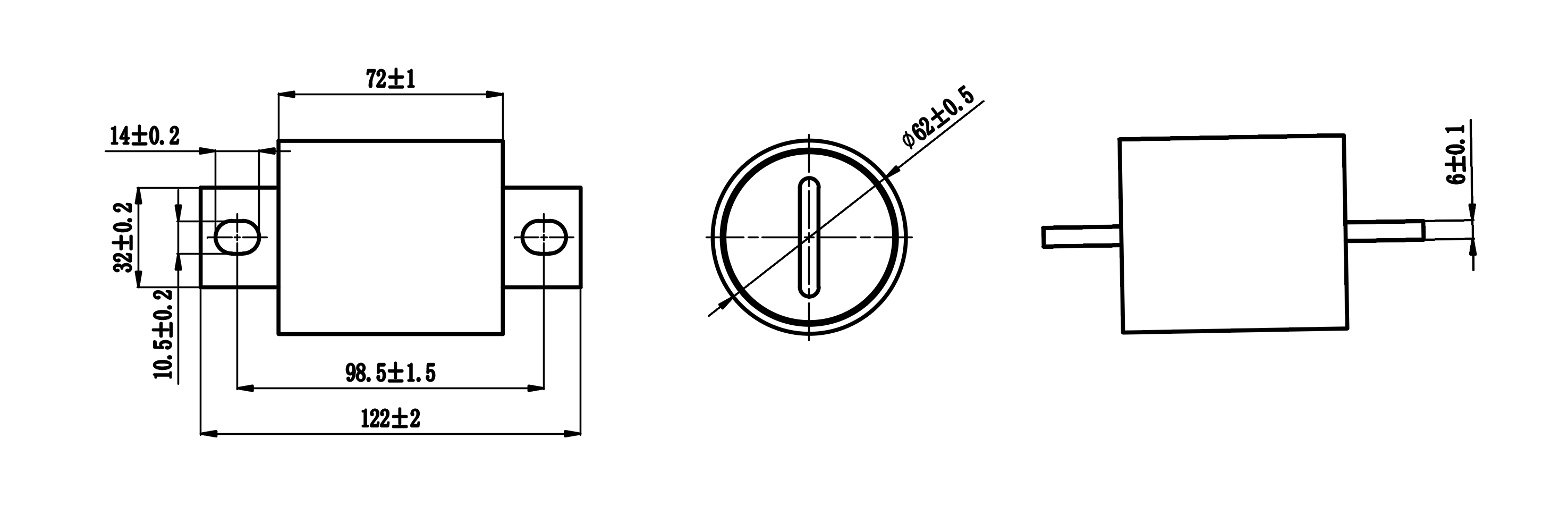

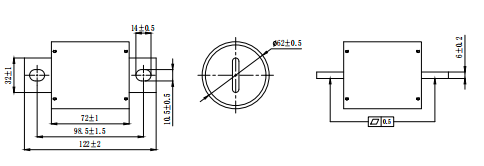

JGA07-S DIMENSIONS:mm
