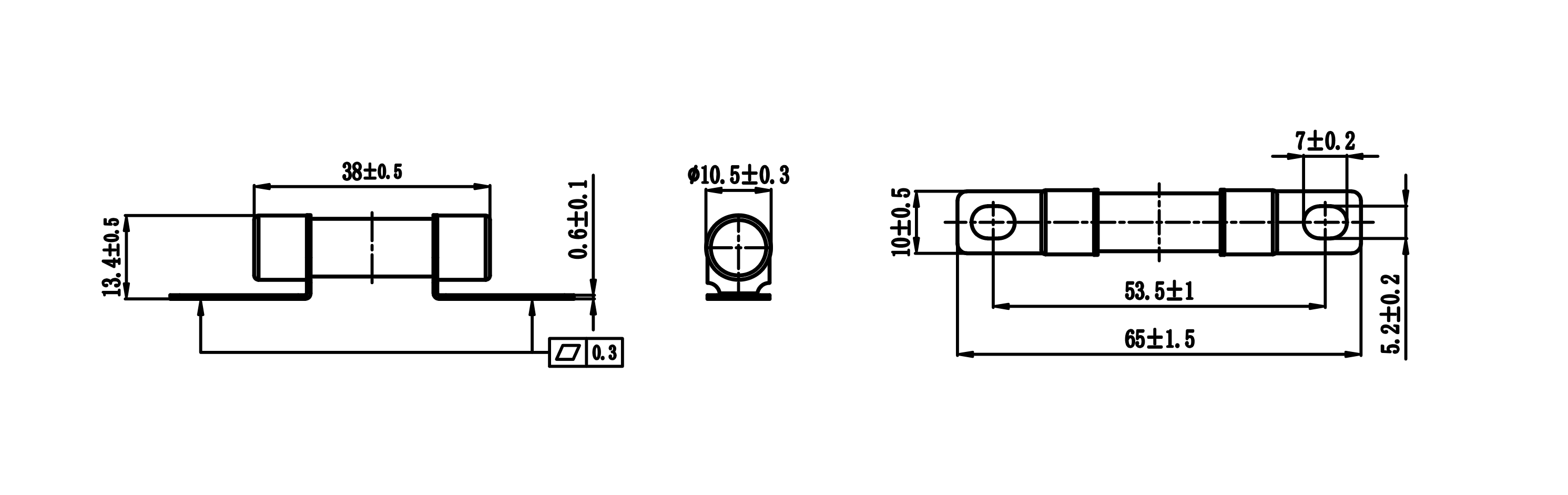

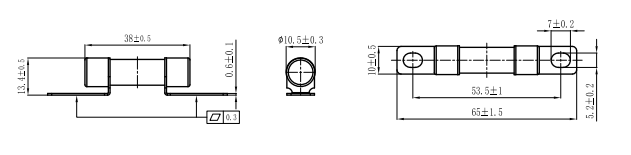

HBA05 Dimensions:mm

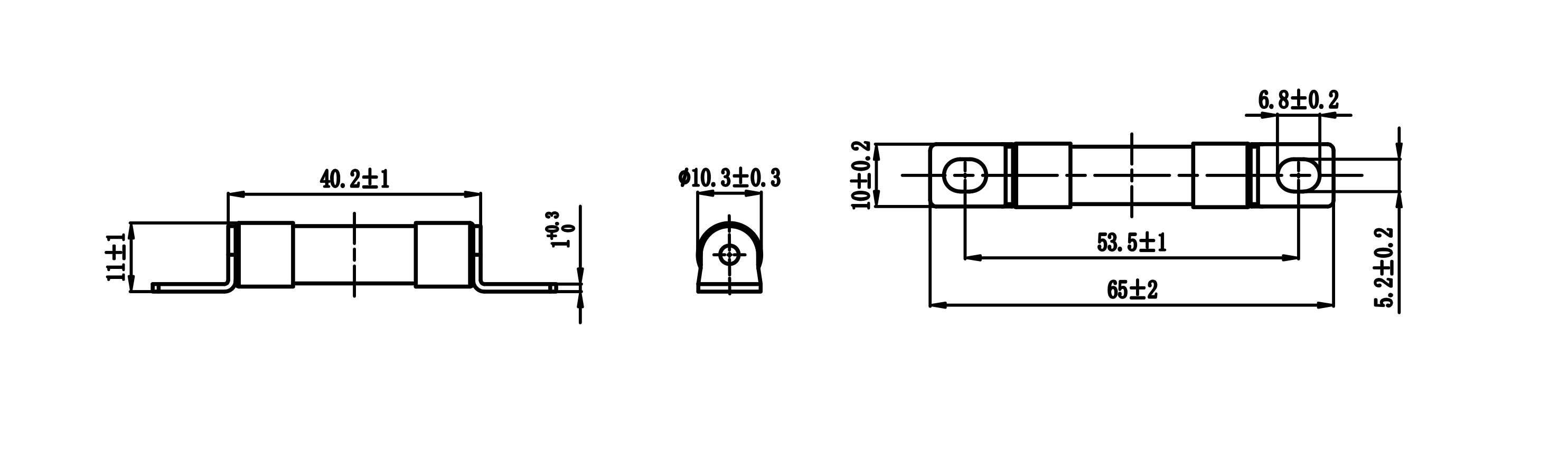

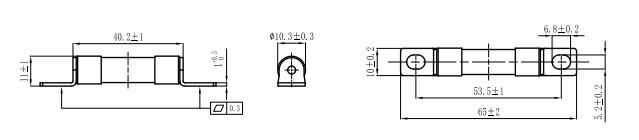

HBA05-A Dimensions:mm

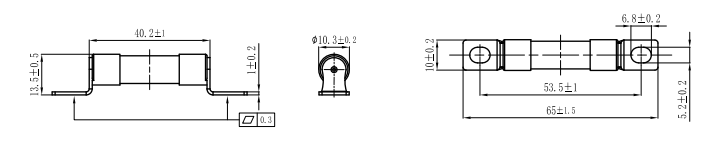

HBA05-B Dimensions:mm
HBA05 Series
- Rated Current： 1A～63A
- Rated Voltage： 500VDC/750VDC/850VDC/1000VDC
- Breaking Capacity： 10kA（DC）/20kA（DC），L/R=1~3ms
- Refered Standard： JASO D622、ISO 8820.8、GB/T 31465.6、QC/T 1174-2022、UL248-20
- Certification： 3C、CE、UL、RoHS
Customer Services
Requirement Parameters
Shape and Dimensions
Product Lists
| Product Models | Rated Voltage | Rated Current | Breaking Capacity | Notes |
|
HBA05 |
500VDC |
10A～63A |
20kA |
3C、CE、ULcertification |
| HBA05-A | 500VDC |
10A～63A |
20kA |
3C、CE、certification |
|
HBA05-A |
750VDC |
10A～60A |
10kA |
3C、CE、certification |
|
HBA05-A |
850VDC |
10A～63A |
10kA | 3C、CE、certification |
| HBA05-A | 1000VDC | 10A～50A | 20kA | 3C、CE、certification |
| HBA05-B | 500VDC | 10A～63A | 20kA | 3C、CE、certification |
