Applications for Energy Storage

REA02-H Series
  • Rated Current: 160A~600A(AC250V/250VDC) 160A~500A(AC300V/250VDC)
  • Rated Voltage: AC250V/AC300V/250VDC
  • Breaking Capacity: AC100kA/50kA(DC)
  • Refered Standard: UL248-13、IEC 60269-4、GB/T 13539.4
  • Certification: 3C、CE、UL、RoHS
Customer Services
Requirement Parameters

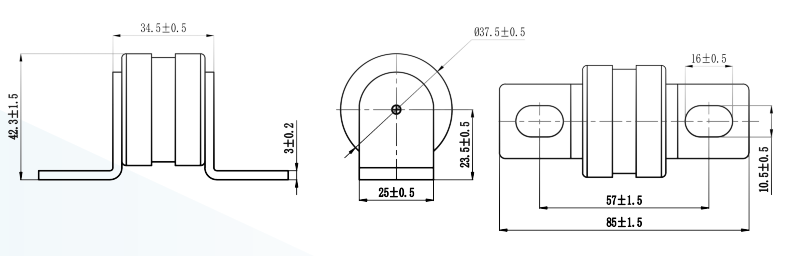

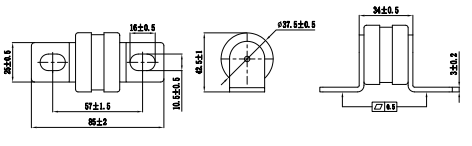

Shape and Dimensions

REA02-H Dimensions:mm
